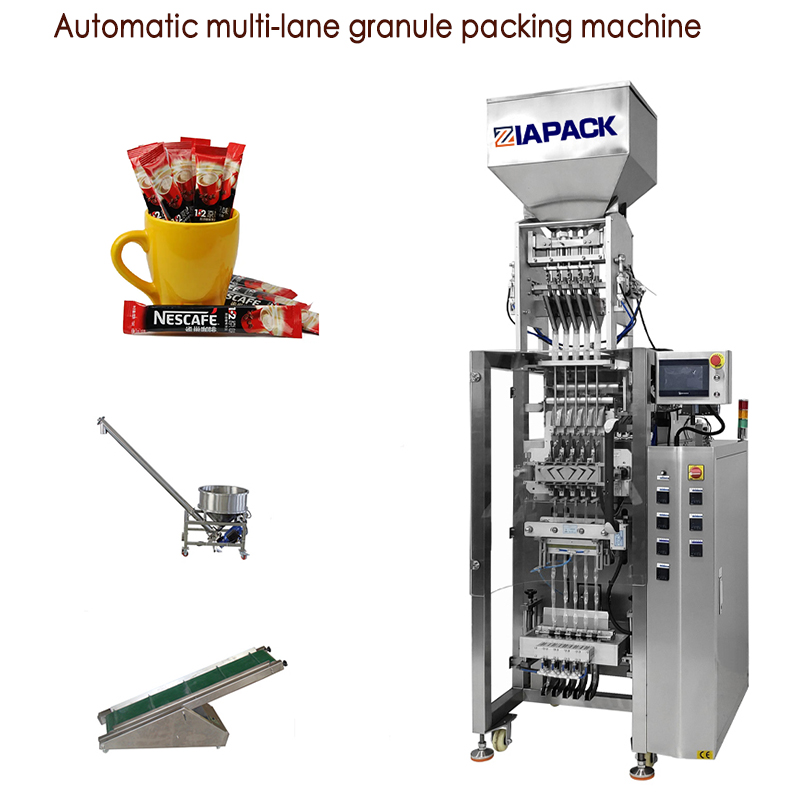

Application:
Applicable for the granule product, like sugar, salt, chiken powder, tea,seed, coffee, detergent powder, grain,etc.
Automatically measuring volume, making bags, filling, sealing, cutting, printing the lot number and cutting easy tearing notches,finished product conveying.
Features:
(1).Famous brand PLC control system,large touch screen,convenient to operate;
(2).Advanced design,high precision and fast speed;
(3).No film alarm,saving materials and no wasting film;
(4).Photoelectric tracking system for precise bag length and position of film.
Technical specifications:
Model | ZL280BK-4 |
Lane number | 4 |
Packed item | granule |
Capacity | About 120--160 bags/min,basic on the product and film |
Measuring method | Volumetric cup/ weigjer |
Bags size Length,width: | L:50-180MM W:17-65MM |
Film width Max. | 280mm |
Film thickness | 0.07--0.10mm |
Sealing type | Stick bag/back sealing |
Vertical sealing | 5mm |
Cutting type | Zig zag cutting |
Film material | Laminated film,like PET/PE,PAPAER/PE, NY/PE, PET/AL/PE.. |
Air consumption | 0.8Mpa 0.8m3/min |
Power source | 1N+PE/50HZ/AC220V(380V)/3.5KW |
Dimension | L1385 x W918 x H2500mm |
