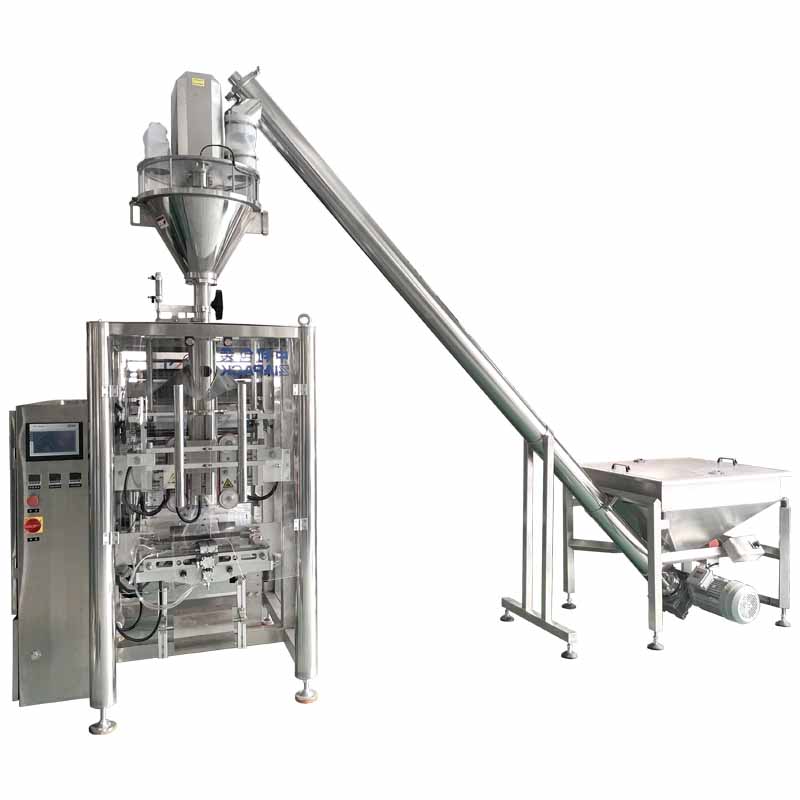

ZL520 Automatic vertical bag forming filling sealing machine for Powder

Application

The machine is widely used for packaging bags of the powder material, such as: mask powder, milk powder, spices, pesticides, fertilizers, medicine, veterinary medicine etc.. Screw filling apply to the materials of bad fluidity, with fast, accurate, economic and practical advantages.

Auger filler machine Milk Powder small vertical form fill seal machine is mainly used for packing powder and flour products, such as nutritional powder, baby food, sesame paste, salt, sugar, flour, starch, flavors, milk powder, albumen powder, etc.

Features

1.Fully automatic and continuous, and easy to connect with other processing machinery;

2.Combined many functions into one: Conveying materials - Weighing materials - Making bags - Filling materials - Filling air or nitrogen (needs additional Air compressor or Nitrogen Generator) - Sealing bag - Printing date & code - Hitting holes - Conveying final bags;

3.PLC and touch screen control;

4.High precision with weight error of ±0.1-0.5%;

5.High efficiency without crashing the materials;

6.Many kinds of compound film can be used, like BOPP/CPP, OPP/VMCPP. BOPP/PE, PET/VMPET/PE, PET/AL/PE, NY/PE, PET/PET, etc

Technical Details

Type: Multi-Function Packaging Machine
Condition: New
Function: Filling, Sealing, Slitting
Application: Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type: Bags, Barrel, Belt, Film, Foil, Pouch
Packaging Material: Metal, Paper, Plastic, Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380V
Power: 1960W
Dimension(L*W*H): 710 *825 *1770 mm
Certification: CE+ISO
After-sales Service Provided: Engineers available to service machinery overseas
Power Supply: 220/380V
Packaging capacity: 40-60 bags / min
Measurement range: 1-50g
Driven: Automatic and PLC System
Bag dimensions: length 60-200 mm, width 50-140 mm (customer made)
Warranty: One Year
Usage: Filling Material
